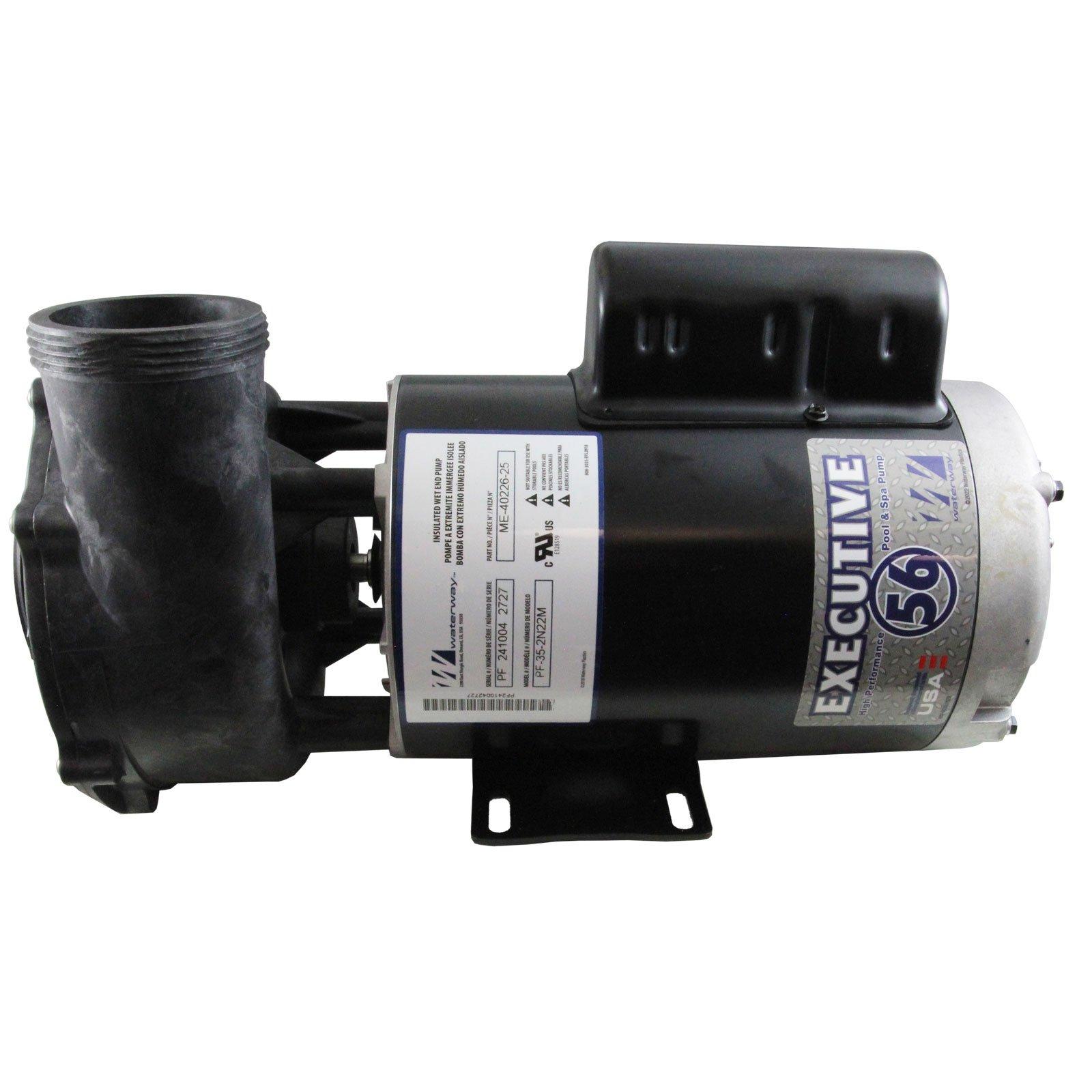

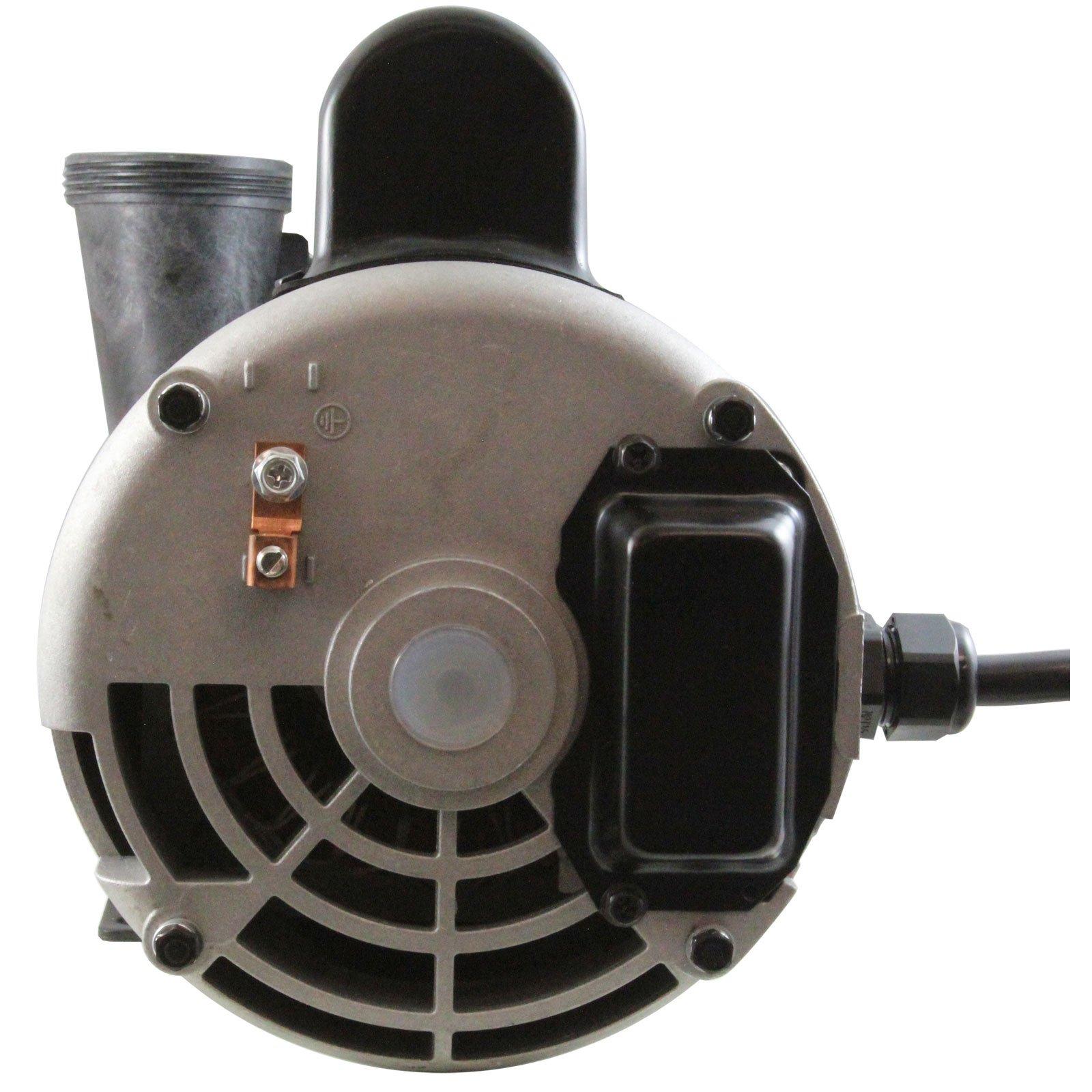

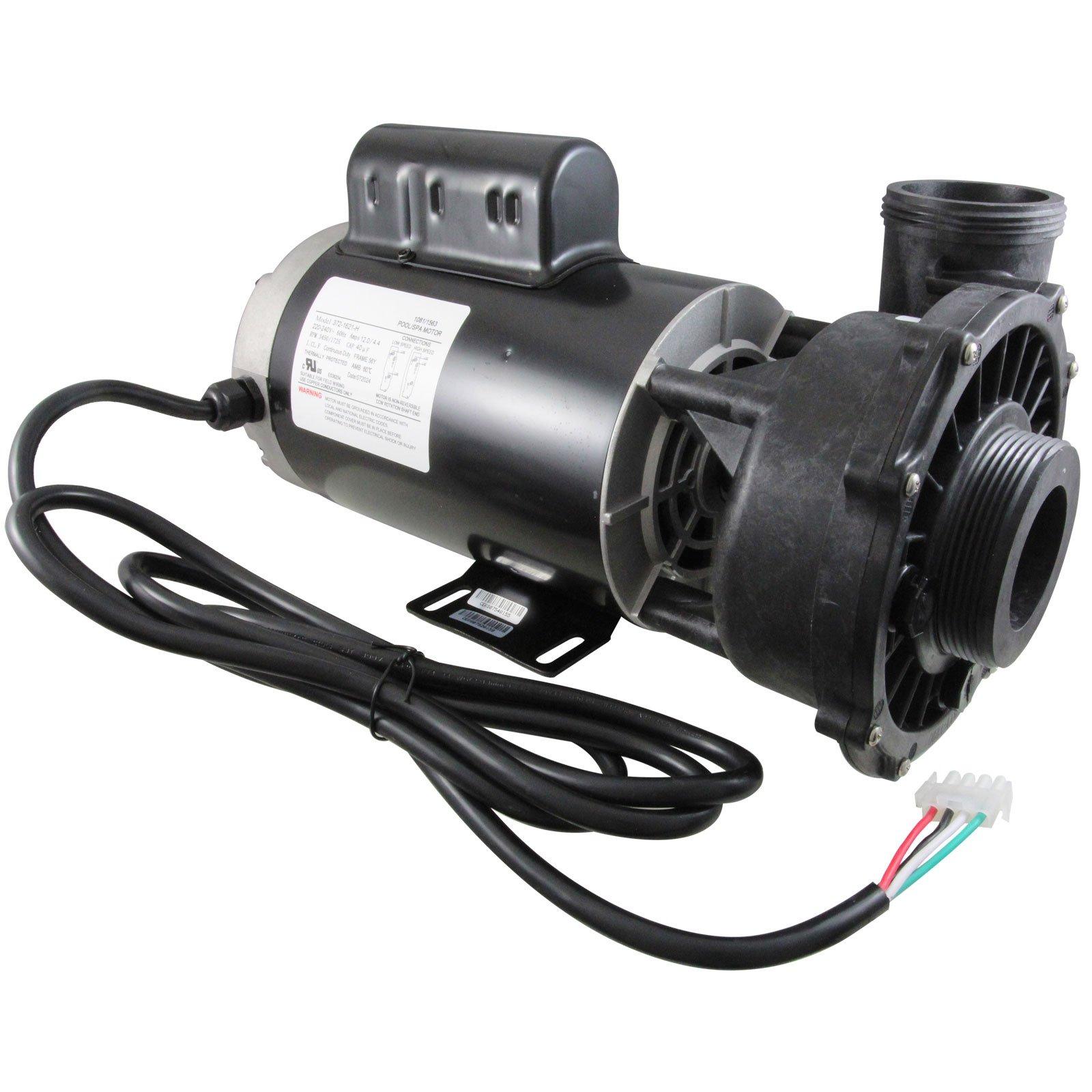

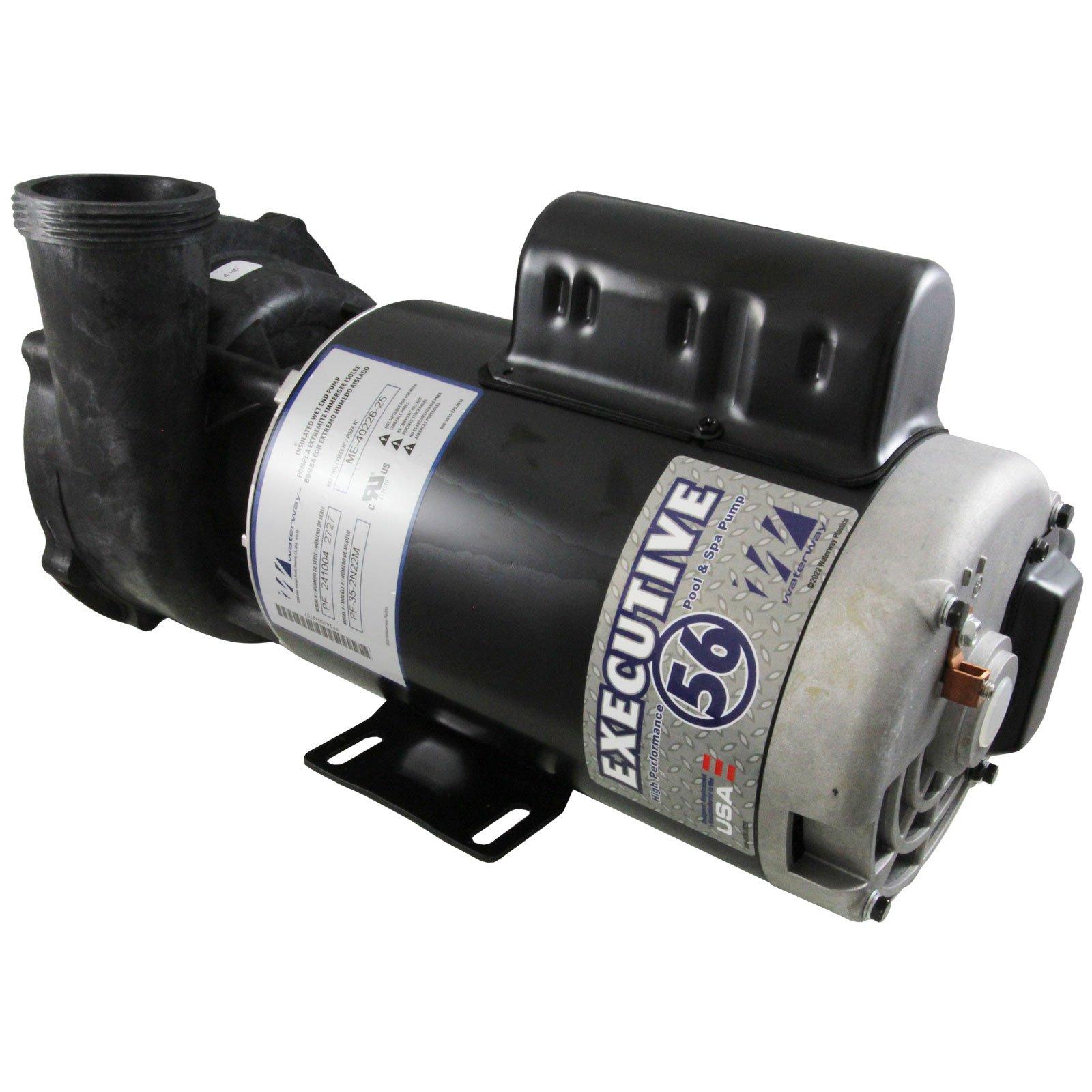

Waterway - Executive 56 Frame 4 HP 2-Speed Spa Pump, 2-1/2in. Intake, 2in. Discharge, 230V

Item No. 40555 | Manufacturer SKU: ME-40226-25
Item No. 40555 | Manufacturer SKU: ME-40226-25
Waterway Executive 56 Frame 4 HP 2-Speed Spa Pump 2-1/2in Intake 2in Discharge 230V
Waterway Executive 56 Frame 4 HP 2-Speed Spa Pump 2-1/2in Intake 2in Discharge 230V
Waterway Executive 56 Frame 4 HP 2-Speed Spa Pump 2-1/2in Intake 2in Discharge 230V
Waterway Executive 56 Frame 4 HP 2-Speed Spa Pump 2-1/2in Intake 2in Discharge 230V
Waterway Executive 56 Frame 4 HP 2-Speed Spa Pump 2-1/2in Intake 2in Discharge 230V
Waterway Executive 56 Frame 4 HP 2-Speed Spa Pump 2-1/2in Intake 2in Discharge 230V
Waterway Executive 56 Frame 4 HP 2-Speed Spa Pump 2-1/2in Intake 2in Discharge 230V
Waterway Executive 56 Frame 4 HP 2-Speed Spa Pump 2-1/2in Intake 2in Discharge 230V
Waterway Executive 56 Frame 4 HP 2-Speed Spa Pump 2-1/2in Intake 2in Discharge 230V
Waterway Executive 56 Frame 4 HP 2-Speed Spa Pump 2-1/2in Intake 2in Discharge 230V
Waterway Executive 56 Frame 4 HP 2-Speed Spa Pump 2-1/2in Intake 2in Discharge 230V
Waterway Executive 56 Frame 4 HP 2-Speed Spa Pump 2-1/2in Intake 2in Discharge 230V
Executive 56 Frame 4 HP 2-Speed Spa Pump, 2-1/2in. Intake, 2in. Discharge, 230V
Executive 56 Frame 4 HP 2-Speed Spa Pump, 2-1/2in. Intake, 2in. Discharge, 230V
Executive 56 Frame 4 HP 2-Speed Spa Pump, 2-1/2in. Intake, 2in. Discharge, 230V
Executive 56 Frame 4 HP 2-Speed Spa Pump, 2-1/2in. Intake, 2in. Discharge, 230V
Executive 56 Frame 4 HP 2-Speed Spa Pump, 2-1/2in. Intake, 2in. Discharge, 230V
Executive 56 Frame 4 HP 2-Speed Spa Pump, 2-1/2in. Intake, 2in. Discharge, 230V
$479.99
Get An Additional 10% Off Sitewide Through 4/2. Discount Applied in Cart. Exclusions Apply*

Waterway ME-40226-25 Executive Spa Pump, 4.0HP, 230V, 2-Speed, 56Frame, 2-1/2" with 8ft Cord durable pump that can be used with many types of hot tubs and spas More Details

subscription order icon Membership Available

Waterway ME-40226-25 Executive Spa Pump, 4.0HP, 230V, 2-Speed, 56Frame, 2-1/2" with 8ft Cord durable pump that can be used with many types of hot tubs and spas
  • Executive wet end designed specifically for 56-frame motors
  • 56-frame motor for added strength, cooler operating temperature, and longer motor life

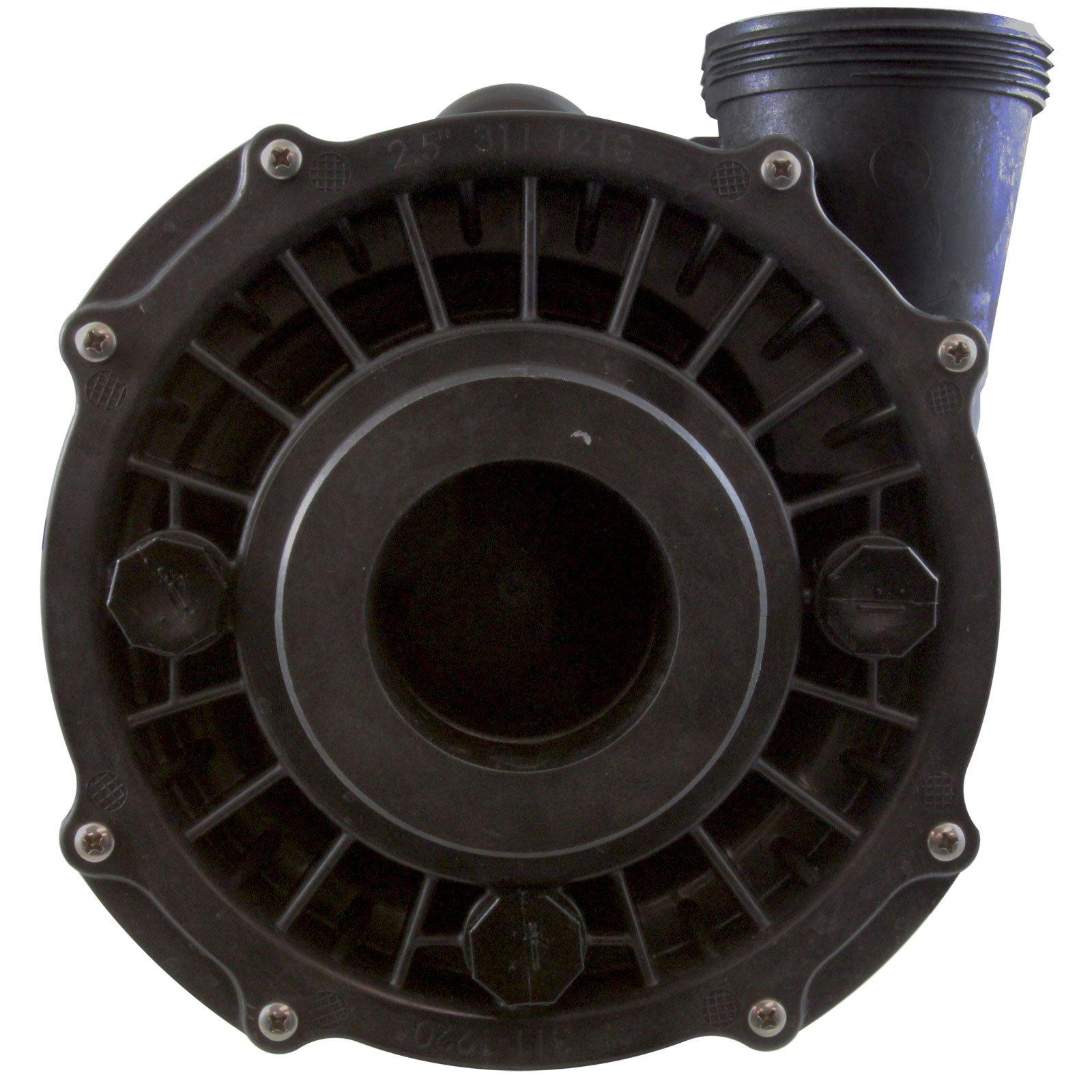

  • Large 6-1/2" diameter wet end for higher head pressure
  • 2.5" Side Intake and 2" Center Discharge for improved flow performance and reduced noise
  • Wet end can be rotated for easy installation
  • Two double shielded ball bearings with moisture resistant grease for quieter operation and longer life
  • Two speed motors have four sets of insulated windings for increased efficiency
  • Dimensions (H x W x L): 9.08" x 8.05" x 14.775"
  • California Title 20 Compliant

The Waterway Executive 56 Frame Spa Pump has an executive wet end designed for 56-Frame motors along with two double-shielded ball bearings with moisture-resistant grease for quieter operation and long life. The dual speed motors have insulated windings for increased efficiency and large, highly versatile 6-1/2" diameter wet end for higher head pressure. A split capacitor (start and run) allows for less energy consumption. Cord: 8' with 4 Pin Amp Plug.

Product Type: Spa Pump
Pump Speed: 2 Speed
Horsepower: 4 HP
Motor Frame: 56 Frame
Voltage: 230V

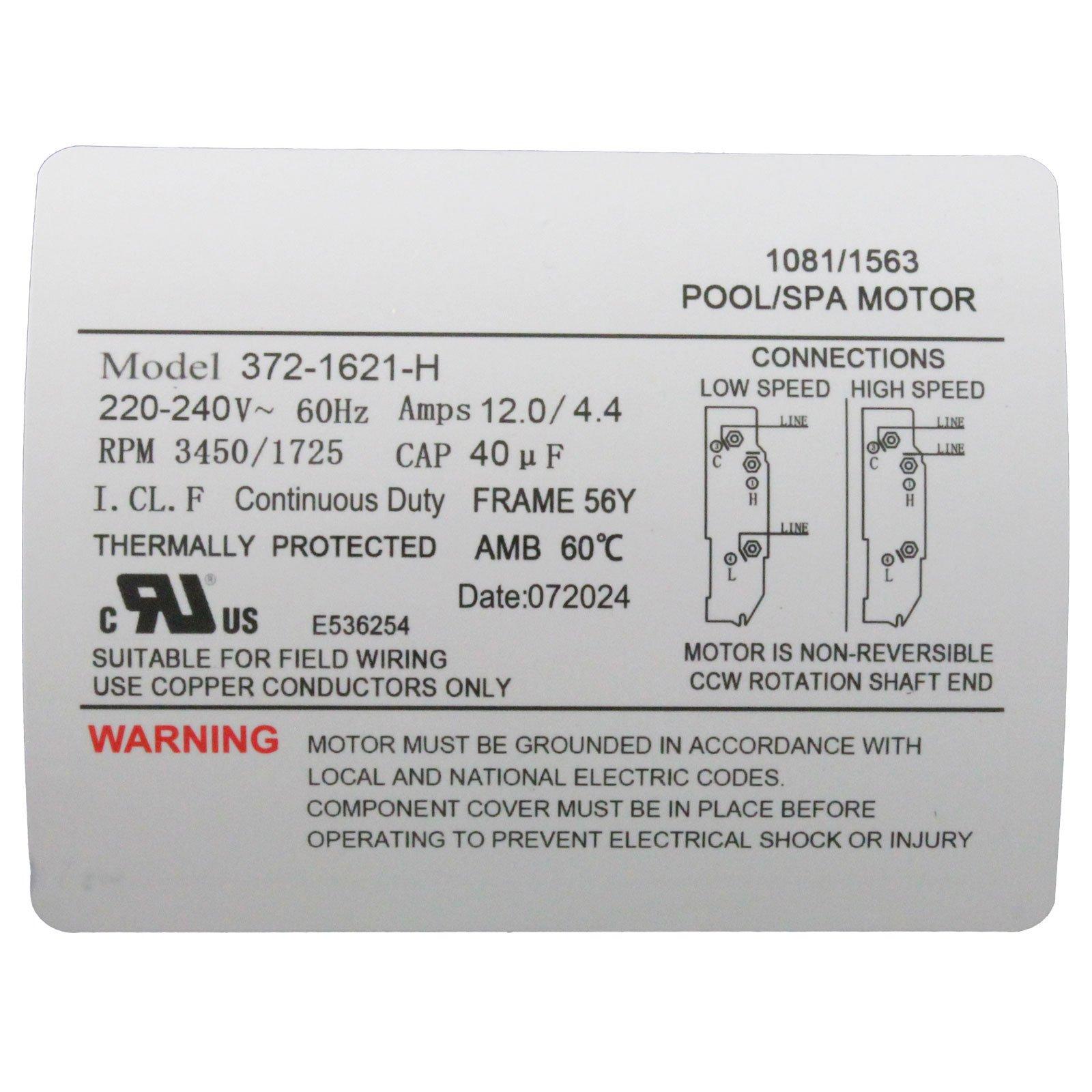

Motor Amperage/Wattage: 12.0A/4.4A
Cord Length: 8 ft
Intake Pipe Size: 2-1/2"
Intake Connection Type: Male Buttress Thread (mbt)
Discharge Pipe Size: 2"
Discharge Connection Type: Male Buttress Thread (mbt)
Manufacturer: Waterway
