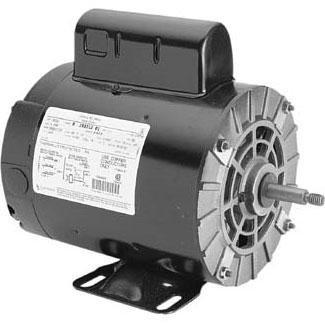

Us Motors/Nidec Motor Corp. - 56Y Thru-Bolt 4 HP Waterway Replacement Pump Motor, 12A 230V
$549.99
The Century Waterway Motor is an assertive body of power and professional performance.
More Details
Membership Available
The Century Waterway Motor is an assertive body of power and professional performance.
- Ball Bearings
- Auto Protector
- 50 C Ambient
- Permanent Split Capacitor
- 3/8-16 UNC-2A Threads Includes Slinger
- Four Thru Bolts on a 5.812 Bolt Circle
The Century Waterway Motor is an assertive body of power and professional performance. It contains ventilation openings to prevent water infiltration, and its premium ball bearings ensure structural longevity. Its four Thru Bolts and 56Y-frame make installation simple, and its permanent split capacitor improves its starting and running factors, requiring neither an internal starting switch nor a governor. The Century Waterway Motor is Single Phase and is available between 1HP and 5HP.
Single Phase wiring is basic with an alternating current that delivers efficient operation. Little maintenance is required and provides reliable performance
The different frame types include: C, J, Y, Z, JM, JP, or TCZ. These letters are combined with numbers to define standard specifications including the way the motor mounts onto the pump, its shaft height, and diameter
This motor is designed with standard efficiency, running at a single speed for consistent and reliable operation
| Flange Type: | Thru Bolt Mount |
| Installation Type: | Residential |
| Phase Type: | Single Phase |
| Voltage: | 240V |
| Shaft Type: | Threaded |
| Motor Frame: | 56Y Frame |
| Horsepower: | 4 HP |
| Product Type: | Pool Motor |
| Energy Efficiency: | Standard |
| Warranty: | 1-Year |
| Product Type: | Pool Part |
| Speed Settings: | Single Speed |
| Manufacturer: | U.S. Motors |
One Year Warranty from Installation or Two Year Warranty from Manufacture Date, see Owner's Manual for a full description of warranty claims and coverage details.
